Another 4wd question. Should Locker be on or off?

Satex

Well-Known Member
First Name
Blake
Joined
Dec 29, 2024
Threads
1
Messages
148
Reaction score
107
Location
San Antonio
Vehicle(s)
2024 Ranger 2.7 Ecoboost
Occupation
Retired
So if I am driving on a snow covered road in 4wd high should I have the locker on or off? I am saying speeds in the 50 mph range.
If you're going 50mph, you don't have a problem in which limited traction prevents forward movement. If you don't need the locker engaged, there's no reason to use it.
Sponsored



chasc

Active Member
Joined
Nov 24, 2024
Threads
4
Messages
32
Reaction score
30
Location
Illinois
Vehicle(s)
2024 Ranger
Because of the normally open differential, if one side’s wheel has far less traction than the other (think one wheel on pavement, the other in the air), then most of the power will go to spinning the wheel with less traction. The locker forces the wheels to turn at the same rate, moving power back to the wheel with grip. Great if you’re spinning one tire at low speed, but in any other condition the locker makes things worse because normal driving requires the tires to turn at slightly different speeds. So use it when you’re almost stuck, avoid it the rest of the time.


Dutch

Well-Known Member
Joined
Nov 29, 2024
Threads
11
Messages
119
Reaction score
208
Location
The land of the wind chill factor
Vehicle(s)
24 Ranger Raptor

jedadiah

Well-Known Member
First Name
Jed
Joined
May 1, 2023
Threads
15
Messages
416
Reaction score
421
Location
Kentucky
Vehicle(s)
'24 Ranger XLT 4x2
Because of the normally open differential, if one side’s wheel has far less traction than the other (think one wheel on pavement, the other in the air), then most of the power will go to spinning the wheel with less traction. The locker forces the wheels to turn at the same rate, moving power back to the wheel with grip. Great if you’re spinning one tire at low speed, but in any other condition the locker makes things worse because normal driving requires the tires to turn at slightly different speeds. So use it when you’re almost stuck, avoid it the rest of the time.
This ⬆
I'll add that once you use the locker and try to turn, you'll want to turn it off anyway. I have it on my 2WD and only use it when I don't want any wheel spin. I'd try it if I were stuck, but thankfully haven't needed to yet. Even at very slow speeds, you can feel it fighting turns.


RichD

Well-Known Member
First Name
Rich
Joined
Dec 29, 2024
Threads
5
Messages
72
Reaction score
92
Location
Washington state
Vehicle(s)
2024 Ranger XLT
Occupation
retired
Okay but good luck doing 50 MPH in deep snow or sand. LOL
I5 in washington state gets lots of cars and trucks in the medians and off into the woods BECAUSE they are all going over 50 on snow covered roads.


Sponsored

sjs713

Member
First Name
Stebo
Joined
Jan 29, 2025
Threads
0
Messages
11
Reaction score
1
Location
Minnesota
Vehicle(s)
Ford Ranger Raptor

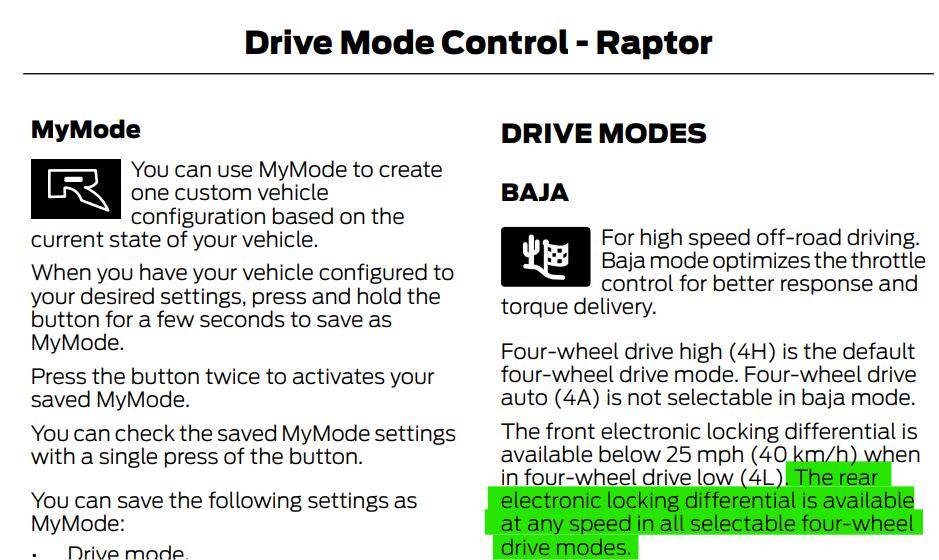

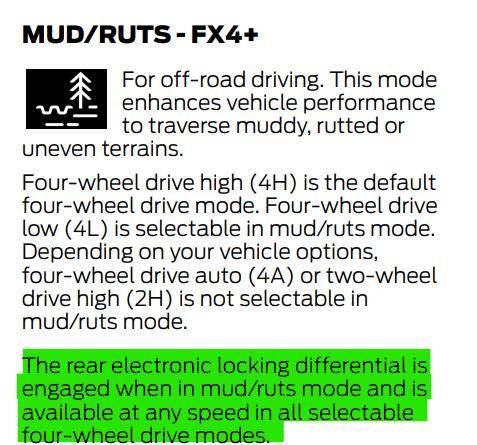

You need to keep reading. When used in certain drive modes there is no speed limit. Like I said very different from the Maverick. The Maverick is a AWD vehicle. Its FWD with a PTU to send power to the rear. The Ranger is a true 4wd with a transfer case and solid geared rear axle.

Screenshot_20250222_195015_Adobe Acrobat.jpg
What does a locker even do?


PlebbythePlebapus

New Member
First Name
Ed
Joined
Sep 19, 2024
Threads
0
Messages
3
Reaction score
0
Location
Michigan, United States
Vehicle(s)
2022 Ford F150
Occupation
Prototype Vehicle Coordinator
You need to keep reading. When used in certain drive modes there is no speed limit. Like I said very different from the Maverick. The Maverick is a AWD vehicle. Its FWD with a PTU to send power to the rear. The Ranger is a true 4wd with a transfer case and solid geared rear axle.

Screenshot_20250222_195015_Adobe Acrobat.jpg
Just to make it simplier english, Maverick Tremor does not have a locker per say. It has a 4 wheel drive locker which it just forces the truck to keep power going to all 4 wheels instead of deciding when to actually give power to the rear. It is a very fun truck though. Its impressive the performance that truck will give you in the trails.


Jalbano2

Well-Known Member
First Name
J
Joined
Sep 21, 2024
Threads
5
Messages
96
Reaction score
94
Location
NYC
Vehicle(s)
Maverick Lariat Lux
Just to make it simplier english, Maverick Tremor does not have a locker per say. It has a 4 wheel drive locker which it just forces the truck to keep power going to all 4 wheels instead of deciding when to actually give power to the rear. It is a very fun truck though. Its impressive the performance that truck will give you in the trails.
Not a 4 wheel locker at all. It's a clutch pack in . Dual in the case of the Tremor. The Ranger has a geared differential with a 3rd member. When the locker is engaged differential is actually locked. No slip at all. The Maverick can slip. Real 4WD vs AWD. And yes the Maverick is fun. The Raptor is AWESOME. I had a Maverick and now Have a Raptor.
