New! mObridge plug 'n' play B&O amplifier replacement kit now shipping!

[mObridge]

So we have a test ranger and this is exactly what we tried. We put our amp in and kept the stock speakers, we did a full microphone tune and the results were surprising.

With more power these factory speakers really open up a bit (they are still crap) dont get me wrong), there is significantly more mid bass, clarity was also much improved as now we have more DSP power and more headroom. The sub was still pretty disappointing as it just clipped and distorted whenever we pushed it so we had to dial the gain back. It would be the first thing after an amp swap that I would recommend as it is no doubt the next weakest link.

Here's why I would recommend an amp replacement first. The factory amp is heavily tuned to the factory speakers, so even after you replace the speakers you are still fighting the factory tune and in some cases your system can sound worse depending on component selection.

Let me give you an example: Lets say you swap the factory soft dome tweeters over with some hard dome tweeters. The frequency response between the hard and the soft will be completely different as will the sensitivity this will make the system sound very unbalanced and most likely sound worse. Even if you swap soft for soft, the characteristics of the tweeter will be very different and so will the response.

If you start with an amp you can always add components one at a time from that point forward and adjust the tune accordingly.

Previously before the world of DSP's I would absolutely agree that you always start with speakers but in todays modern systems this is not the case.

Sponsored



[mObridge]

Hi All!

We are now offering a full PNP kit for the 6G Ranger. This was developed in Australia with them having access to the vehicle 18 months ago so the kit is very well sorted out and has already been installed into many cars already.

The kit comes with everything required:

• K2 8.1.1 1.2KW RMS amplifier
• PNP harness into the factory harness
• Power harness direct from the battery for more current
• Replacement tweeter PNP cables for the amp to control these in the DSP and not the ACM
• Mounting bracket with all screws to bolt into the factory location
• Comprehensive fitment instructions

https://mobridge.us/product/ford-ranger-amplifier-plug-and-play-a2b/

These are now in stock and shipping!

I forgot to add we will be running a $200 off coupon for the first month after lunch.
use RANGER6G at checkout if interested.



[be.jammmin]

For the front tweeters, do you have to run the wires through the doors or do you plug in somewhere before the door jam?



[mObridge]

For the front tweeters, do you have to run the wires through the doors or do you plug in somewhere before the door jam?

New wires have to be ran, we include these cut to length and with the factory tweeter connector on them.

https://mobridge.us/wp-content/uploads/2024/02/K2_A2B_amplifier_ranger_install_guide.pdf

here is a link to the install guide if you want to have a look.



[be.jammmin]

Very much appreciated. Your price with its ability is by far ahead of the competitors. I will 100% be purchasing one of these in the near future. Thank you for your support. B



[mObridge]

HI,

Yes we would certainly recommending upgrading the speakers at some point.

Our amp has a lot more power than the B&O system plus our amp takes over the tweeters via new cabling and they can then be tuned via the DSP with active crossovers. You will certainly get a lot of improvement just putting our amp in and at the same time a speaker upgrade will greatly improve it from there.

cheers,

mObridge



[Rhite95]

When I am ready to upgrade this is what I will start with.



[hand-filer]

New wires have to be ran, we include these cut to length and with the factory tweeter connector on them.

https://mobridge.us/wp-content/uploads/2024/02/K2_A2B_amplifier_ranger_install_guide.pdf

here is a link to the install guide if you want to have a look.

The instructions jump from Step 23 to Step 27. Just a typo I presume.



[mObridge]

That is a typo. I will amend



[hand-filer]

The new Ranger uses A2B which is also a digital audio bus. So its direct digital straight into the DSP and amp.

This does plug directly into the factory system including the A2B extension cable. So yes this replaces the Zen, DSP and amp all in one. The Bronco guys have been fitting our kit for some time now.

I've attached a photo of how it looks in place of the B&O.

As someone who was involved with wiring harness design, I have to ask: why is the wiring exposed like that and not in a protective loom?



[mObridge]

As someone who was involved with wiring harness design, I have to ask: why is the wiring exposed like that and not in a protective loom?

What is shown in the install photos is pre-production.
The looms that ship in the kit are fully wrapped in Tesa tape and the power wire is protected full length in nylon sheath

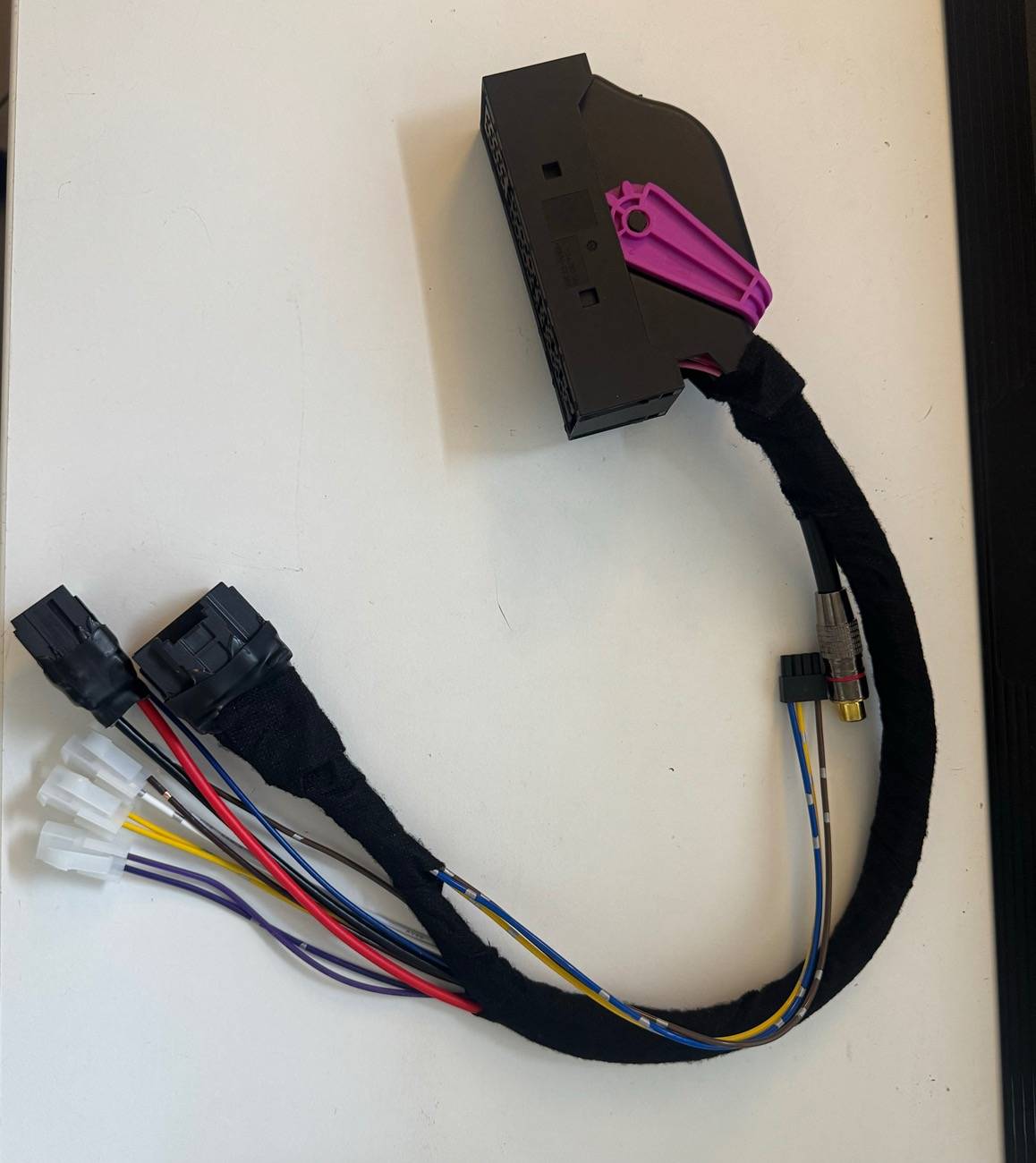

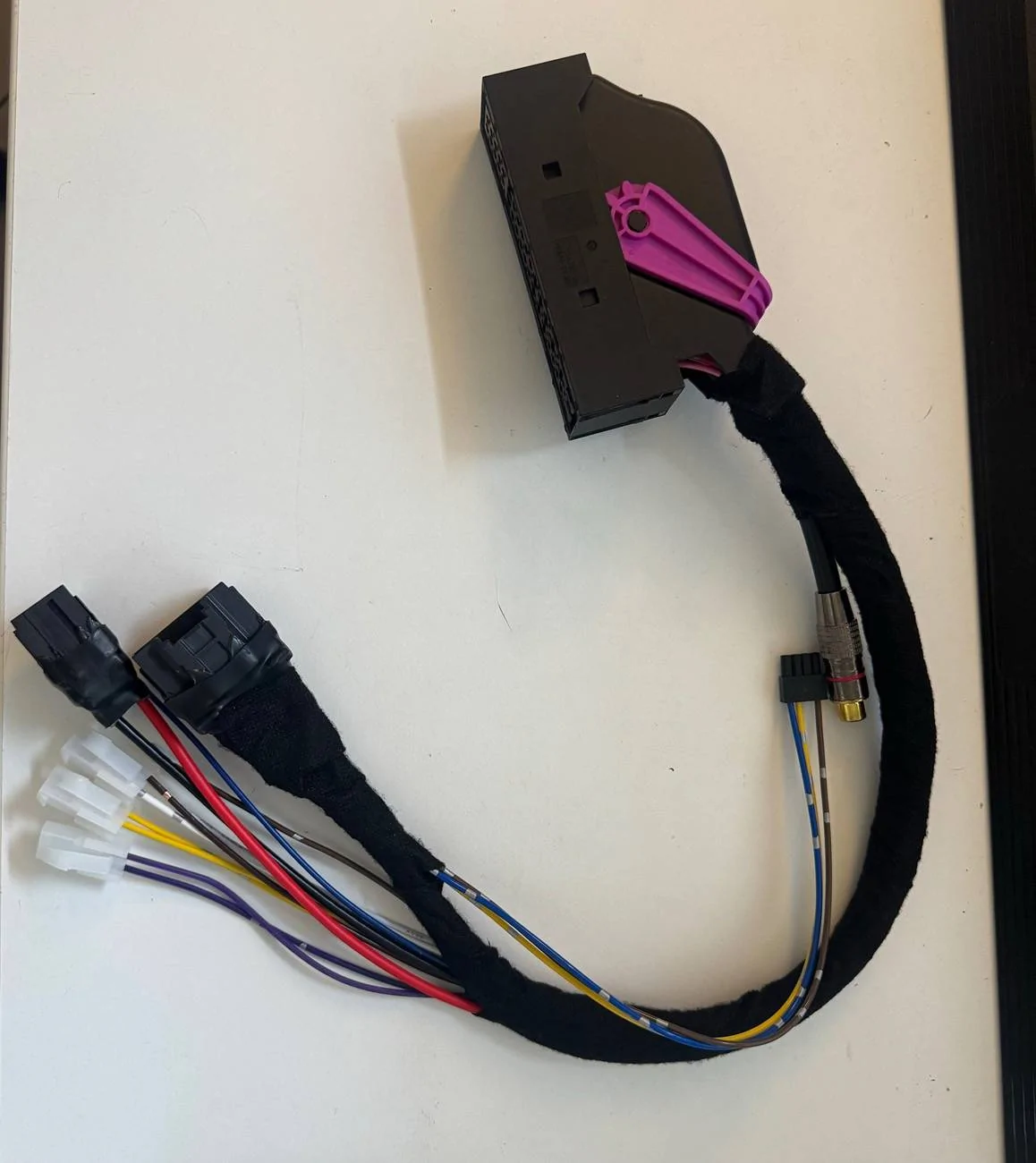

Here is a production loom



[hand-filer]

Nice! I didn't mean to jump to any conclusions. Your product is quite intriguing.



[jrRaptor]

Nice! I didn't mean to jump to any conclusions. Your product is quite intriguing.

I know I want one!



[mObridge]

Nice! I didn't mean to jump to any conclusions. Your product is quite intriguing.

Feel free to ask if you have any other questions, happy to answer whatever!



[be.jammmin]

Is the amp pre-wired for the sub? If so what garage wire and do you need a Ford plug to connect to the amp on the sub? No concerns on the rest of the speakers with factory wiring given the wattage, but curious on the sub?
Thanks
B
